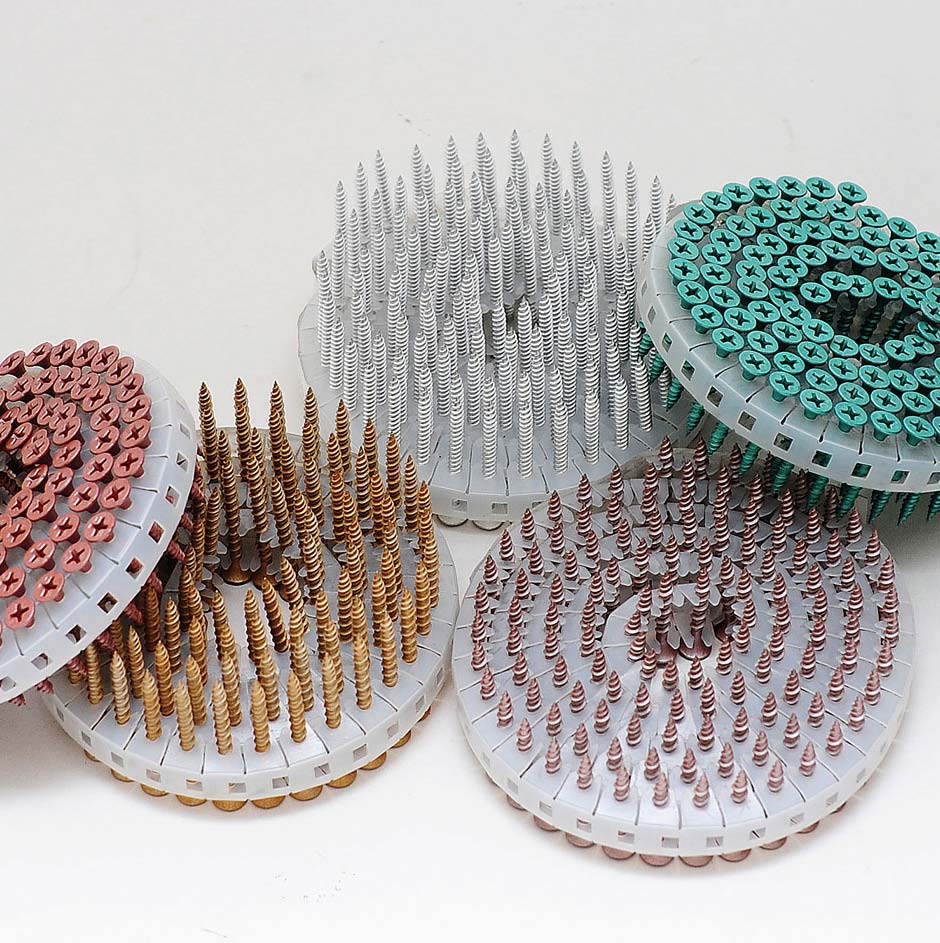

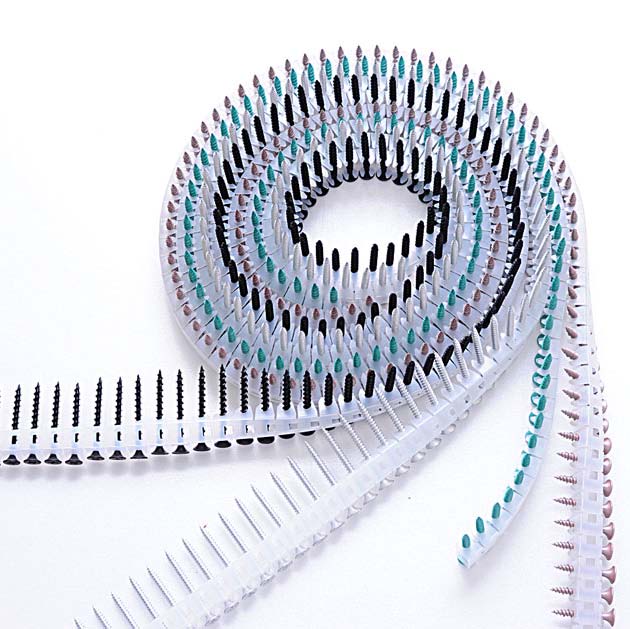

JIS Coil-Type Collated Screw Coarse Thread
JIS B1125 Drilling Tapping Screws
|
●Certificate No.：TCTW 10 009
●Surface Treatment：Galvanization, Non-Chrome
●Application：Gypsum Board＋Wooden Board
●Meterial：Carbon Steel |
|
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
|
max 8.3
|
3.8
|
25
|
Bugle
|
Coarse Thread
|
100
|
20
|
|
28
|
|
30
|
|
32
|
|
35
|
|
40
|
|
41
|
|
45
|
|
60
|
DTSN Coarse Thread
JIS B1125 Drilling Tapping Screws
|
●Certificate No.：TCTW 10 009
●Surface Treatment：Galvanization, Non-Chrome
●Application：Gypsum Board＋Steel Board
●Meterial：Carbon Steel |
 |
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
|
max 8.6
|
4.2
|
30
|
Bugle
|
Coarse Thread
|
100
|
20
|
|
32
|
|
35
|
|
40
|
|
41
|
|
70
|
Light Gauge Steel Construction Screw Fine Thread
JIS B1125 Drilling Tapping Screws
|
●Certificate No.：TCTW 10 009
●Surface Treatment：Galvanization, Non-Chrome
●Application：Gypsum Board＋Steel Board
●Meterial：Carbon Steel |
|
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
| max 7.3 |
3.0 |
20
|
Bugle
|
Fine Thread
|
100
|
20
|
|
22
|
|
max 8.3
|
3.5
|
20
|
|
22
|
|
25
|
|
28
|
|
30
|
|
32
|
|
35
|
|
40
|
|
41
|
|
45
|
|
●Certificate No.：TCTW 10 009
●Surface Treatment：Galvanization, Non-Chrome
●Application：Gypsum Board＋Steel Board
●Meterial：Carbon Steel |
 |
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
| max 7.3
|
3.0 |
16
|
Bugle+ribs
|
Fine Thread
|
100
|
20
|
|
20
|
|
3.5
|
20
|
|
22
|
|
25
|
|
30
|
|
32
|

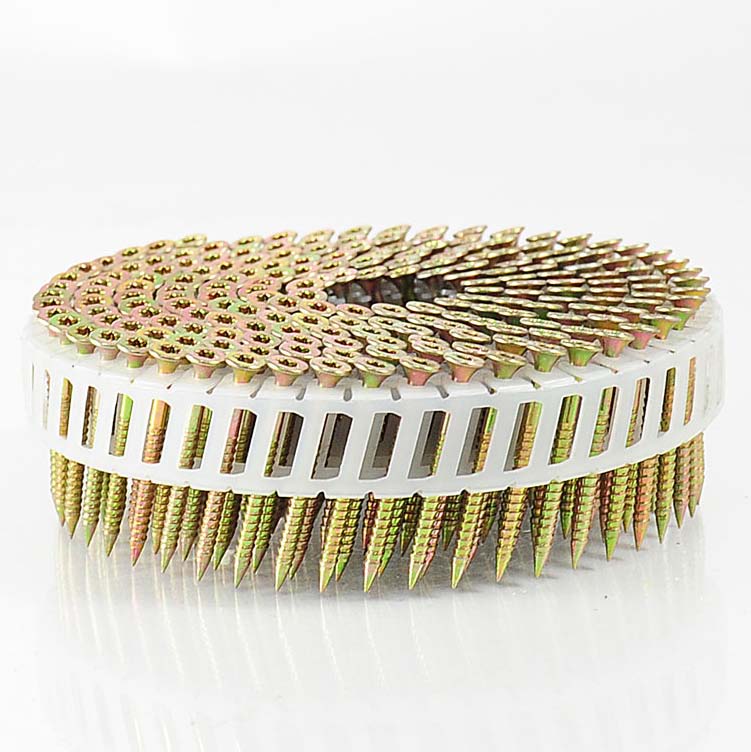

Coil-Type Collated Screw Hi-Lo/ Coarse/ Fine Thread
|
●Surface Treatment：Galvanization, Disgo Lnnew, Non-Chrome
●Application：Gypsum Board＋Steel Board
●Meterial：Carbon Steel
|
 |
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
|
max 8.5
|
3.9
|
25
|
Bugle
|
Hi-Lo Thread
|
100
|
20
|
|
28
|
|
32
|
|
41
|
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
|
max 8.5
|
3.8
|
25
|
Bugle
|
Coarse Thread
|
100
|
20
|
|
28
|
|
32
|
|
41
|
|
Head Dimension
（ｄｋ）
|
Diameter
（Ｄ）
|
Length
（Ｌ）
|
Head
|
Thread
|
Pieces/Coil
|
Coils/Box
|
|
max 8.5
|
3.5
|
25
|
Bugle
|
Fine Thread
|
100
|
20
|
|
28
|
|
30
|
|
32
|
|
